Warm Audio WA-47JR Nickel

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years.

• FET transformerless '47 style condenser microphone.
• Custom made true '47-style k47 34mm capsule (model# WA-47-B-80v).
• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns mylar.

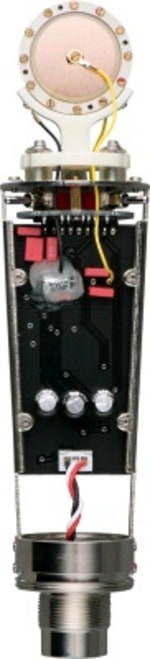

• Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors.
• Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.
• High-pass filter: 70Hz
• Pad: -10db
• Self-noise: 9dBA
• Dynamic range: 138dBA
• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
• Frequency Range: 20 Hz~20 kHz
• Sensitivity: 10mV/Pa or -40dB
• Output Impedance: 100 ohms
• Rated Load Impedance: ≥1kOhms
• Maximum output: 16dBu @1kHz, 1kOhms, 0.5% THD
• S/N Ratio: 85dBA (IEC651)
• Equivalent Noise: 9dBA (IEC651)
• Dynamic Range: 138dBA (IEC651)
• 48v phantom powered
• 3-Pin Gold-Plated XLR

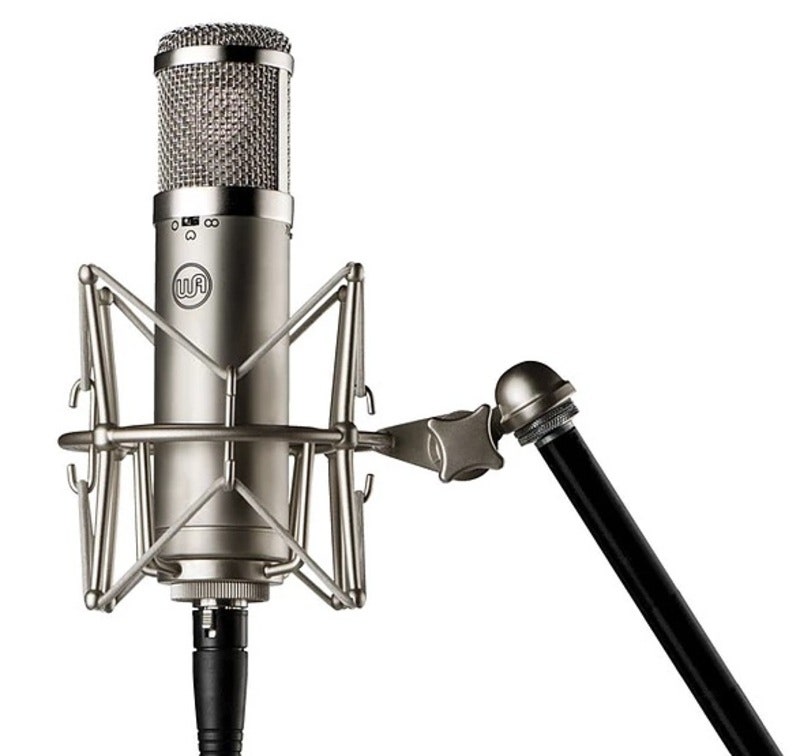

• Includes: Shockmount, hardmount, zipper storage pouch
• Nickel Plated
• Weight: 1.1 lbs
• Diameter: 52mm
• Length: 210mm
