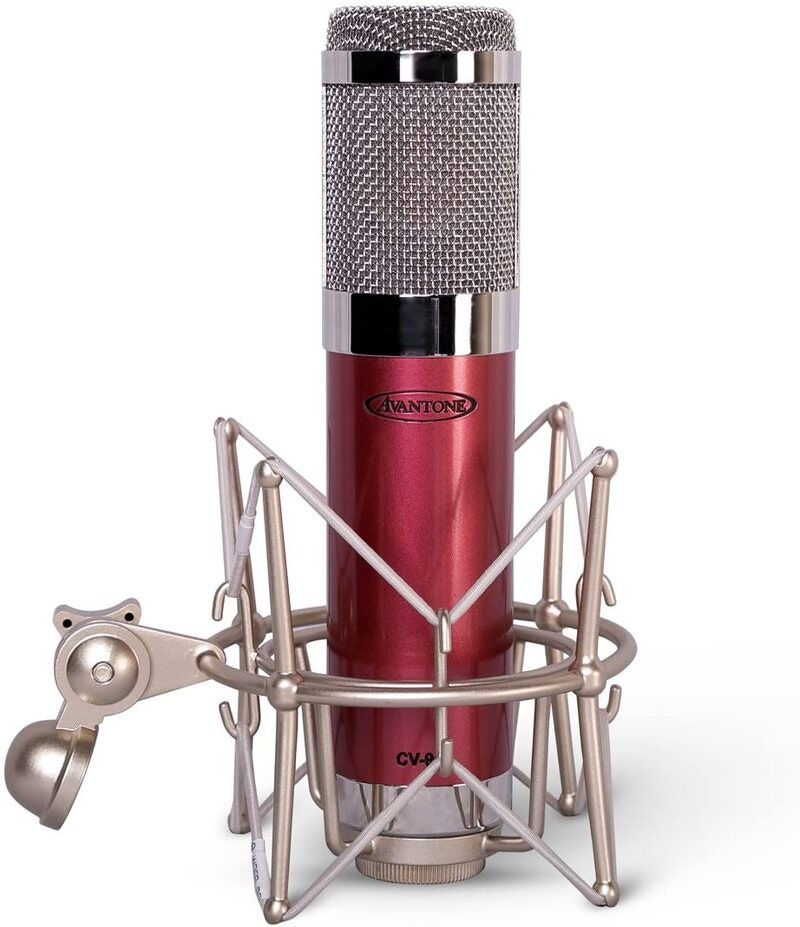

Avantone CV-12

Specifications

• Type: Tube-Type True Condenser Microphone

• Capsule: Dual-sided 32mm center-terminated gold-sputtered Mylar (6 micron)

• Polar Patterns: 9 patterns selectable at PS-12 power supply

• Frequency Response: 20Hz - 20kHz +/- 3dB

• Output Impedance: <=250 Ohms / transformer isolated

• Maximum SPL: 136dB (0.5% THD @1000Hz) 146dB with pad engaged

• Equivalent noise level: <17dB

• S/N Ratio: 78dB

• Sensitivity: -35dB

• Output Connector: Male XLR 7 pin w/ special power supply & cables

• Tube Type: 6072A

• High-Pass Switch: 80 Hz 6dB/octave Switch

• Attenuation Switch: -10dB Switch

• Power Requirements: Dedicated PS-12 Power Supply w/ selectable 115/230 VAC capability

• Finish: Polished Nickel trim / Metallic Cabernet Red Body

• Weight: .8 kgs / 1.8 lbs

• Dimensions: 237mm x 46mm / 9.5" x 1.8"
