Artikelnummer 1075224

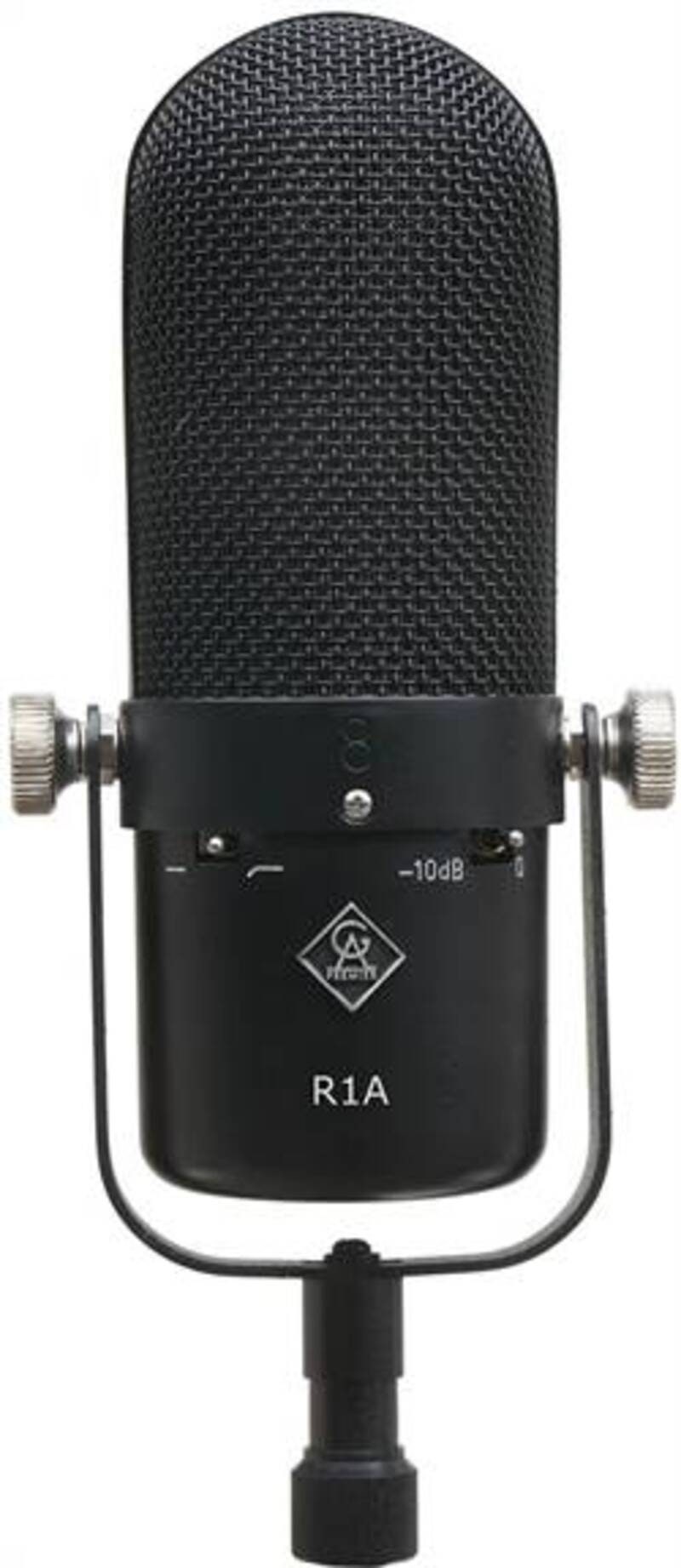

Golden Age Premier R1A

Active High Quality Ribbon Microphone

5999,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

The R1A is a unique microphone since it is a high quality and low cost vintage style ribbon microphone with active electronics using high end components.

FEATURES

  • The unmatched natural and musical sound of a classical ribbon microphone combined with a discrete amplifier (no integrated coircuits used), powered by standard 48V phantom power, that isolates the ribbon and the gain make-up transformer from the outside world. A stunning realism with the feeling of "being-there" and a fast and life-like transient reproduction.
  • The typical large and mellow ribbon sound quality with a very smooth top end and an extended low end.
  • An ultra-high SPL capability, 160 dB SPL (1% THD @ 1000Hz) and a very high sensitivity for a ribbon microphone, similar to many condenser microphones.
  • Figure-8 directional pattern for wide sweet spots both in the front and in the back of the microphone.
  • 50mm long ribbon made of 2 microns thick aluminium foil and an internal shock mount for the ribbon and magnet assembly.
  • Selectable high pass filter and -10dB Pad.
  • Removable microphone cable built with Mogami Neglex Studio Quad cable and Neutrik XLR goldplated connectors.
  • Swedish made Lundahl 1927A transformer.
  • High end Wima film and Nichicon electrolytic audio capacitors used in the amplifier.
  • Manufactured of the finest materials for a great performance and long-term reliability.
  • The R1A can be used with any standard mixer or preamp with a balanced input that can supply 48V phantom power.
  • Great sound that suits most sound sources and genres.
  • A solid build quality that will last many years of normal use.

SPECIFICATIONS

  • Type: Large ribbon geometry, pure aluminium, 2 um thick, 50 x 5 mm size with active electronics.
  • Polar pattern: Figure 8
  • Frequency response: 30 Hz – 18 kHz +/3 dB
  • Sensitivity: -40 dB (0 dB = 1V/Pa) @ 1 kHz
  • Equivalent Noise Level (A-weighted per IEC 268-4): < 18 dB typical
  • Maximum SPL (<1% THD @ 1 kHz): 160 dB. (with Pad engaged)
  • Output impedance: 200 ohm, balanced
  • Recommended load impedance: > 1000 Ohms
  • Current consumption: 4 mA.
  • Highpass filter: -3dB @160Hz, 6 dB/octave
  • Pad: -10dB
  • Dimensions: 69x185 mm.
  • Weight: 820 g
