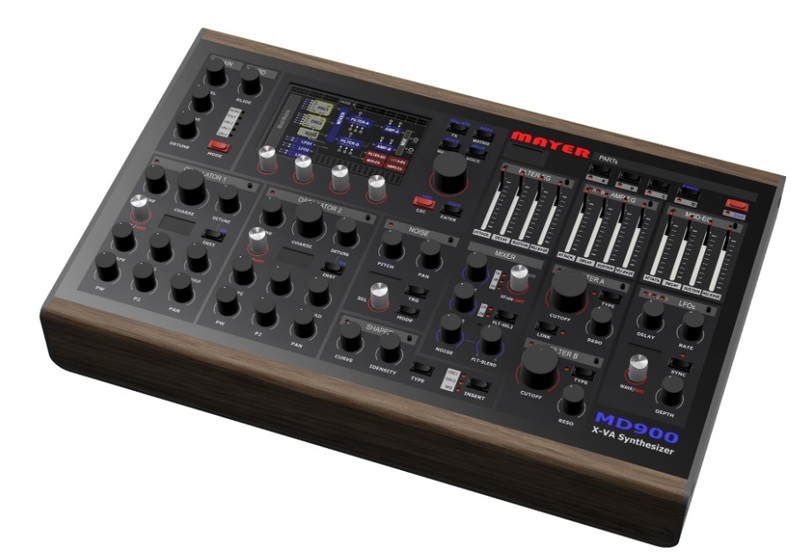

Mayer EMI MD900
Extended Virtual Analogue (XVA) Desktop Synthesizer
MD900 is a polyphonic desktop synthesizer, multitimbral with 4 parts. A polyphony of up to 16 voices are shared by the 4 multi-timbral parts. All of these 4 parts have their own effect stack [Mod-Delay (flanger, chorus, vibrato), Reverb, Tube-AMP, EQ, LP-Filter, DYNAMIC (Limiter) , Stereo Delay
The overall audio path is stereo. Rationally, the oscillator, mixer filter, amps and effects are all in stereo.
- 16 Voices, 4 parts
- Stereo signal path from oscillator via mixer and filter to effects section
- 2 Oscillators per part: algorithm oscillator with standard waveforms and morphing or wavetable oscillator
- Noise sample oscillator
- 2 Multimode filters with free signal routing
- 4 Envelopes, 3 LFOs and modulation matrix with 24 slots
- Effects section per part with reverb, delay, chorus, flanger, compressor, EQ and more
- Drum instruments (sample-based)
- Arpeggiator and step sequencer
- Clip launcher for managing sequences and drum patterns
- 5" Colour touch screen
- Aluminium case with walnut front and back panels
- Stereo line output: 2x 6.3mm jack
- Stereo headphone output: 6.3 mm jack
- Stereo line input: 6.3 mm jack
- MIDI In / Out / Thru
- 3x USB-A port (1x USB/MIDI host)
- Sustain and expression pedal inputs: 2x 6.3 mm jack
- Dimensions (W x D x H): 460 x 295 x 65mm
- Weight: 4.4 kg
- Incl. external power supply (15V DC) and USB stick
