Palmer Monicon M G2

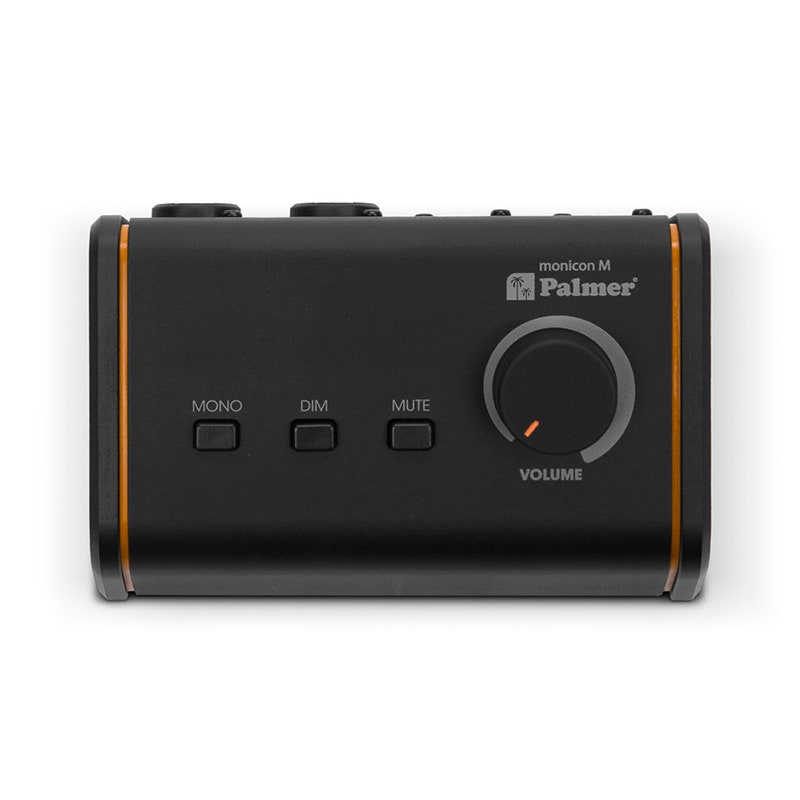

MONICON M G2 – passive monitor controller with precise analogue level control

The MONICON M G2 is a compact passive studio volume controller designed for project studios, editing suites and multimedia workstations. Its fully analogue signal path ensures latency-free monitoring, while dedicated Mono, Dim and Mute switches allow fast adjustment of the monitoring situation.

Overview and applications

The unit connects easily to audio interfaces, computers or mobile devices via balanced XLR/TRS combo inputs or an unbalanced 3.5 mm TRS input. Output is available via balanced XLR or 3.5 mm TRS, supporting both professional studio monitors and compact loudspeaker systems.

The large precision analogue volume control enables accurate level adjustment without affecting audio quality.

Construction and materials

The housing is built from aluminium and sheet steel, providing durability and stability in desktop studio environments. The compact format allows convenient placement within easy reach.

Connections and integration

The input section provides two balanced line inputs via XLR/TRS combo sockets and one unbalanced line input via 3.5 mm TRS. The output section includes two balanced line outputs via 3-pin XLR (male) and one unbalanced line output via 3.5 mm TRS (female). This configuration allows flexible integration between professional and consumer audio devices.

Control and workflow

• Mono – sums the signal for mono compatibility checks.
• Dim – reduces the monitoring level temporarily.
• Mute – instantly silences the output.

FAQ

What does it mean that the MONICON M G2 G is passive?
It operates without active amplification in the signal path and uses an analogue passive volume control for level adjustment.

Is the signal path latency-free?
Yes, the fully analogue design ensures latency-free operation without altering the sound.

What input and output connections are available?
Inputs: 2x balanced line-in via XLR/TRS combo sockets and 1x unbalanced line-in via 3.5 mm TRS. Outputs: 2x balanced line-out via 3-pin XLR and 1x unbalanced line-out via 3.5 mm TRS.

Which monitoring functions are available?
Dedicated switches for Mono, Dim and Mute allow fast monitoring control.

Specifications

• Type: Passive studio monitor controller
• Material: Aluminium, sheet steel
• Frequency response: 20–20,000 Hz (±0.2 dB, rel. avg)
• Colour: Silver
• Balanced line inputs: 2
• Balanced input connectors: XLR/TRS combo socket
• Unbalanced line inputs: 1
• Unbalanced input connector: 3.5 mm TRS
• Input impedance (balanced): 20 kΩ
• Input impedance (unbalanced): 10 kΩ
• Min. SNR: 112 dB (<1% THD, 1 kHz, unity, A-weighted)
• Unbalanced line outputs: 1
• Unbalanced output connector: 3.5 mm TRS (female)
• Balanced line outputs: 2
• Balanced output connectors: XLR 3-pin (male)
• Max. output level: 20 dBu (<1% THD, 20 Hz–20 kHz)
• Dynamic range: >115 dB (AES17)
• Crosstalk: -79 dB
• Ambient temperature: 0–40 °C
• Max. humidity: 80% (non-condensing)
• Dimensions (W x H x D): 160 x 62 x 106 mm
• Weight: 480 g
