Artikelnummer 1062786

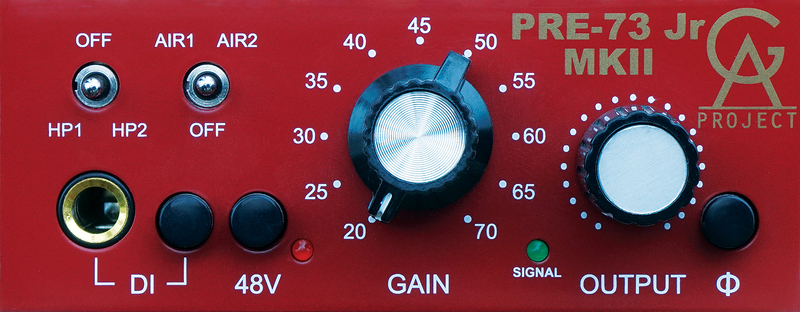

Golden Age Project PRE-73 Jr MKII

Vintage Style Mono Preamp/DI

2495,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

The circuit used in the PRE-73 Jr MKII is similar to the preamp section in the classical 1073 module with a corresponding sound character that is warm, punchy, sweet and musical. These classic characteristics have been heard on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres.
The essence of this sound is now available at a surprisingly low cost, making it available to nearly everyone.

FEATURES

  • Vintage Style class-A electronics. No integrated circuits in the signal path. No surface mount components.
  • GAIN switch range 20 70 dB.
  • Selectable two position high frequency AIR boost eq, 3 or 6 dB @ 30 kHz.
  • Selectable 6 dB/octave two frequency high pass filter at around 40 (HP1) and 170 Hz (HP2).
  • Switchable phantom power and absolute phase.
  • A high-impedance instrument input for any sound module, electric guitar or bass.
  • A simple signal LED indicator.
  • The output level control makes it possible to do fine gain adjustments and also to overload the main gain stage for more character and then
  • lower the signal to a suitable level before the output stage.
  • Combo XLR/TRS input jack and separate output XLR and TRS jacks for flexible connections.
  • Insert jack for inserting EQ´s and other units.
  • The circuit board is prepared for the Carnhill input transformer.
  • External power supply to avoid interaction with the audio circuits and transformers.
  • The small format makes it possible to mount 4 units in our 19-inch rack kit, the UNITE MKII.
  • A solid build quality that will last many years of normal use.
