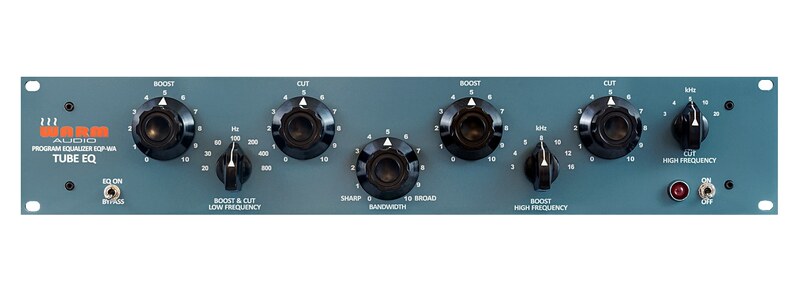

Warm Audio EQP-WA

The One EQ To Rule Them All

The EQP-WA faithfully recreates the most renowned tube equalizer in recording history, the original vintage Pultec-Style “EQP-1A.”Just like the original, the all-analog EQP-WA is able to maintain full, harmonically rich tone while adding and subtracting frequency information, compared to plug-ins and digital emulations that are unable to preserve the full character while sculpting the tone. The 100% analog, fully-discrete circuit adds anything from thump to punch to brilliance on the way in or in post-processing to program material. The original has been used on legendary recordings by artists like Led Zeppelin, John Mayer, Bob Dylan, The Beatles and more. Producers from Geroge Martin to Rick Rubin have used vintage originals to shape the sound of music’s biggest hits for decades.

Pure Sound-Shaping With Rich Analog Tone

Equalization is a key element of any professional recording, and the EQP-1A-style of EQ is the industry benchmark for professional EQ without compromising tone. To combat the expected tone loss during signal processing, the EQP-WA is designed just like the original with discrete tubes and transformers designed to enhance tone, not destroy it. Loaded with premium 12AX7 & 12AU7 tubes and CineMag transformers, the output amplifier section of the EQP-WA passes the EQ-corrected audio through tubes and transformers to maintain signal integrity and rich tone. This results in more width, depth, and separation on tracks. Favorite uses for the EQP-WA include setting vocals in a mix, adding final-touches to drums and final mixes, separating guitar tracks, and dialing in clarity to bass guitar. Even with that exhaustive list, there’s no studio application that the EQP-WA can’t handle.

• Plus version with trim knob for "Stereo Matching"
• Tube Equalizer based on the classic “Pultec” EQP-1A
• CineMag input and output transformers - Made in U.S.A.
• Premium high voltage 12AX7 and 12AU7 tubes
• CineMag inductor EQ section
• EQ section is bypassable - signal still passes through tubes and transformers for warming effect
• No insertion loss - loss restored by tube amplifier
• XLR and TRS transformer balanced inputs
• XLR and TRS transformer balanced outputs
• Flat frequency response from 20 Hz - 50 kHz
• Boost and Cut controls can be used simultaneously for phase effect
• Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db
• Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db
• High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db
• High frequency cut - 3, 4, 5, 10, 20 kHz - 14 db
• 5 added frequency points for greater flexibility
• Switchable 115/230 volt IEC power inlet
• Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable
