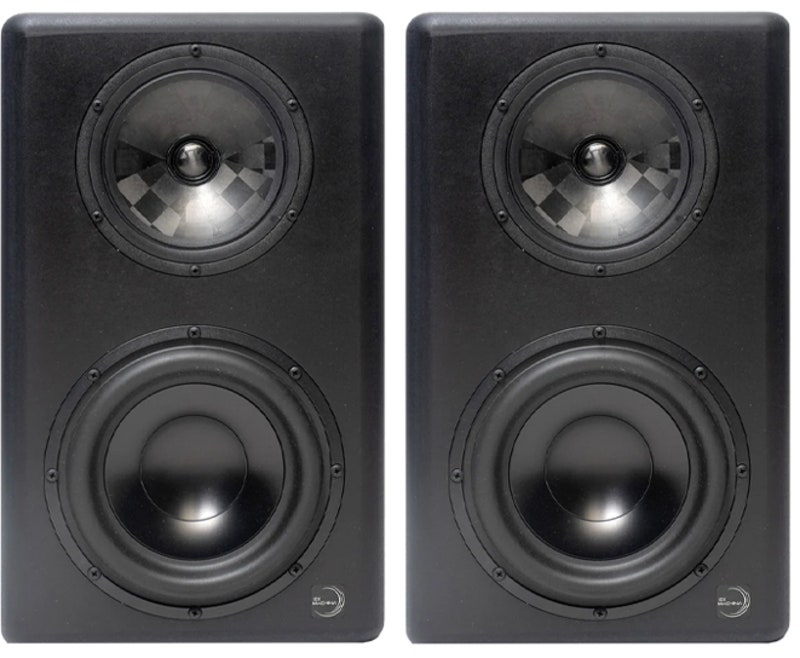

Ex Machina Pulsar MkII

SPECIFICATION OVERVIEW:

Linear Frequency Response: +/- 1db 35hz – 30khz (measured at 30cm cal position)

Low Frequency Cutoff: -6db at 28hz

Linear Phase Response: +/- 15° 20hz – 30khz

Maximum Continuous SPL @ 1m: 110db, 104db @50hz

THD+N (94db @ cal position): < .5% Power Average 100hz – 30khz

Coverage Angle: 90° conical

DOWNLOADS:

DRIVER COMPLEMENT

176mm (7”) midrange, 25mm (1”) tweeter Custom SEAS/Ex Machina/Composite Sound Metamodal TX™ mid/high coaxial

221mm (9”) Custom Aluminum SEAS Extreme Series Architecture Subwoofer

CROSSOVERS

200hz Sub/Mid, digital 8th order, phase corrected

2khz Mid/Tweet, digital 8th order, phase corrected

AMPLIFIER COMPLEMENT

Subwoofer: Hypex NC252MP – 250W RMS

Midrange: Hypex NC252MP – 100W RMS, voltage limited

Tweeter: Hypex NC100HF – 50W RMS, voltage limited

DSP/CONVERSION

A/D Chipsets: AKM AK5572EN

D/A Chipsets: AKM AK4493EQ

DSP: 5th Gen SHARC+ AD21565

INPUT SENSITIVITY

2vrms to full scale

MASS & DIMENSIONS

483mm H x 289mm W x 345mm D (19″ x 11.3″ x 13.6″)

23kg (51lbs)
