Artikelnummer 1072717

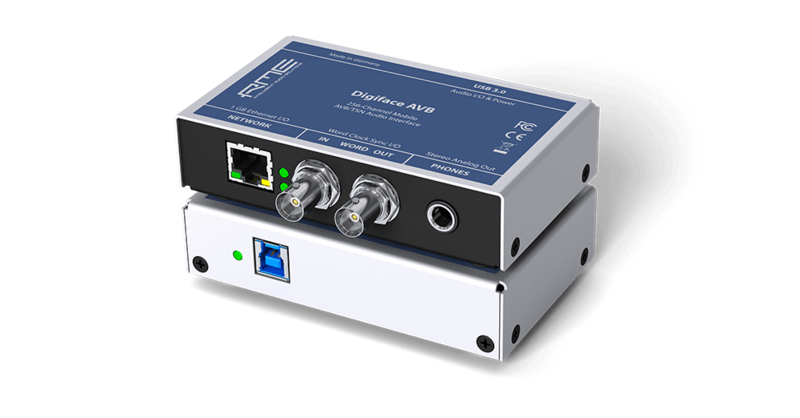

RME Digiface AVB

256-Channel 192 kHz USB Audio Interface

9799,00 kr/st
Lägg i varukorgen

Finns i butik 1-3 dagar

Gigabit Ethernet Port

  • RJ45
  • 100 Mbit/s, 1 Gbit/s
  • Standard port LEDs: yellow connected, green data transmission
  • Supports straight and crossover cables (Auto MDI-X)
  • Up to 16 AVB audio streams
  • AVDECC based exchange of status and control data
  • Network-based remote control of the unit (TotalMix Remote)


Word Clock In

  • BNC, not terminated (10 kOhm)
  • Switchable internal termination 75 Ohm
  • Automatic Double/Quad Speed detection and conversion to Single Speed


Word Clock Out

  • BNC
  • Max level: 5 Vss
  • Level with termination 75 Ohm: 4.0 Vss
  • Internal impedance: 10 Ohm


Output Analog Phones 33/34

  • Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
  • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
  • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
  • THD @ -1 dBFS: - 96 dB, 0.0016 %
  • THD+N @ -1 dBFS: -95 dB, 0.0017 %
  • Channel separation: > 100 dB
  • Output: 6.3 mm TRS jack, unbalanced
  • Output impedance: 2 Ohm
  • Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
  • Max power @ 0.1% THD: 50 mW


Digital

  • Clocks: Internal, AVB, Word
  • Supported sample rates: 44.1 kHz up to 192 kHz


General

  • Power supply: USB bus power
  • Typical power consumption: 1.5 Watts
  • Current at 5 V bus power operation: 300 mA
  • Max power consumption: 2 Watts (400 mA)
  • Dimensions (WxHxD): 112 x 26 x 83 mm (4.41" x 1.02" x 3.27")
  • Weight: 300 g (0.49 lbs)
  • Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
  • Relative humidity: < 75%, non condensing
