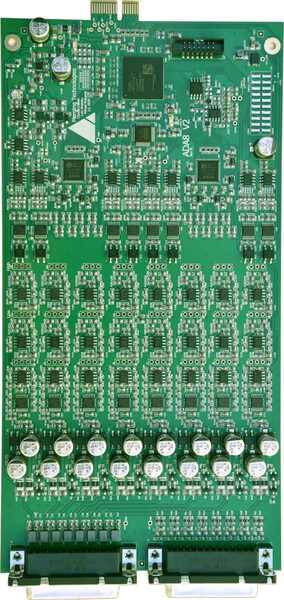

Merging Technologies ADA8S

The ADA8S is a complex input and output card for the Merging audio mainframes Hapi and Horus. With eight inputs and eight outputs, it offers two-way audio conversion: analog to digital and digital to analog.
These remote controlled Mic/Line Input and Output cards feature 3rd generation Dual Gain topology, inspired by the exceptional Anubis preamps, for highest audio quality without compromise.
With two ADA8S 8-channel Mic/Line In and Line Out Cards you can configure Hapi for up to 16 analog I/O channels.
The ADA8S supports sampling frequencies of up to 192 kHz.

Features:

• 8 exceptionally transparent, Swiss designed preamplifiers plus 8 outputs
• Dynamic range of 139 dB (A-weighted, typ) on the line inputs
• Full remote access for all parameter changes
• Dynamic range of 125 dB (A-weighted, typ.) on the line outputs
• Phantom power/polarity invert/impedance switchable per channel
• Switch to line level on a per channel basis via display or remotely via browser
• Auto-mute circuitry for “no-pop” power cycling
• Digitally controlled output trims for line-up procedures
• 2x 25-pin Sub D connector
• Sampling frequencies up to 192 kHz
