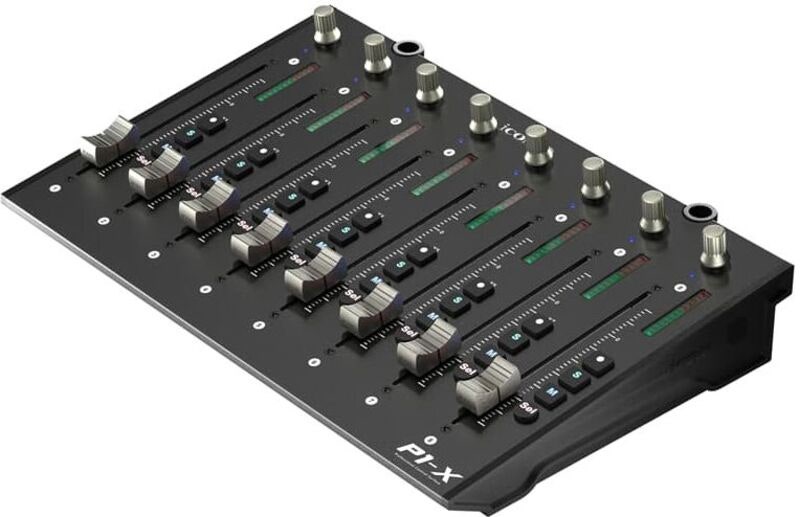

iCon P1-X

Expand your P1-M’s capabilities to an impressive 16, 32, or even 64 channels, depending on your DAW, by incorporating the P1-X DAW Control Expander. Each P1-X module boasts eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual function encoder knobs, LED meters and essential mute, solo, select, and record buttons.

With the optional D4 OLED display, you gain access to crucial channel information, including names, pan positions, and various control parameters for each channel. Craft a truly personalized control surface, tailored precisely to your preferences and requirements. Please remember that the expandability of the P1-X relies on your Digital Audio Workstation’s capabilities. Refer to your DAW’s manual to determine the number of extenders supported. Elevate your audio prowess with the P1-X DAW Control Expander, and unleash an entirely new level of control in your music production journey!



The optional magnet mounted D4 OLED display keeps you apprised of track names, pan position, and additional parameters plus a 2-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats. This is crucial for viewing plugin and EQ parameters.



Features:

• Functions as an extender for the iCON Pro Audio P1-M MIDI DAW controller
• 8x touch-sensitive motorized faders with 12-bit resolution
• Extremely hard wearing, durable and versatile
• Optional D4 OLED display shows channel name, control values, channel colors etc. (DAW dependent)
• Attractive, modern LED meters featuring precise, clear and eye-catching level indicators
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• Illuminated buttons for channel control including Mute, Solo and Record
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software downloadable from product page on website
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMapTM software
• Superior build quality and robust metal casing with Kensington lock port
• Superb reliability with Cortex-M7 @500 MHz ARM chip



Tech specs:

Connector	To computer USB connector
Power supply	12V/2. 5A DC
Current consumption	2. 0A or less
Weight	: 1.509kg (3.33lb)
Dimensions	300 (L) x 203,7 (W) x 60,5 (H) mm (15. 9" (L) x 8" (W) x 2. 4" (H)
