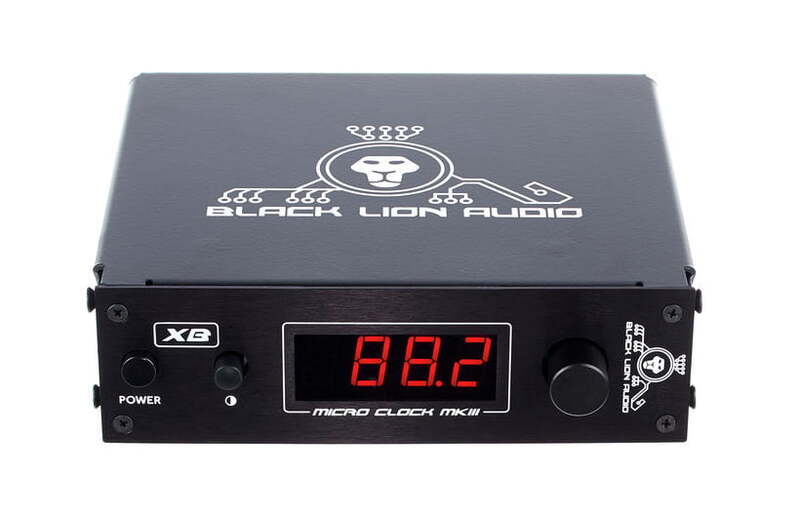

Black Lion Audio Microclock MK3 XB

The Micro Clock MKIII XB is the most accurate word clock we’ve developed to date. With only 0.6pS RMS of jitter at the BNC outputs, it has less than one third of the jitter of the standard Micro Clock MKIII! It boasts incredibly accurate crystal oscillators and superior quality galvanic isolation, both of which contribute to the extraordinarily low jitter measurement.

• Precise signal separation and noise reduction
• High musicality and detailed harmonic content
• Ultra-low jitter design 0.6pS RMS
• 8 Selectable sample rates: 44.1 KHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
• 6 BNC outputs (75 Ohm) with separate output amplifiers for maximum isolation
• Coaxial S/PDIF output (75 Ohm), 44.1 kHz - 192 kHz
• Optical S/PDIF output (75 Ohm), 44.1 kHz - 96 kHz
• Balanced AES output (110 Ohm), 44.1 kHz - 192 kHz
• 1 U rack mounting with mounting accessories included
• LED display with frequency display
• External 9 V DC power supply (6 W power consumption)
• Dimensions (W x D x H): 165 x 152 x 445 mm
• Weight: 1 kg
