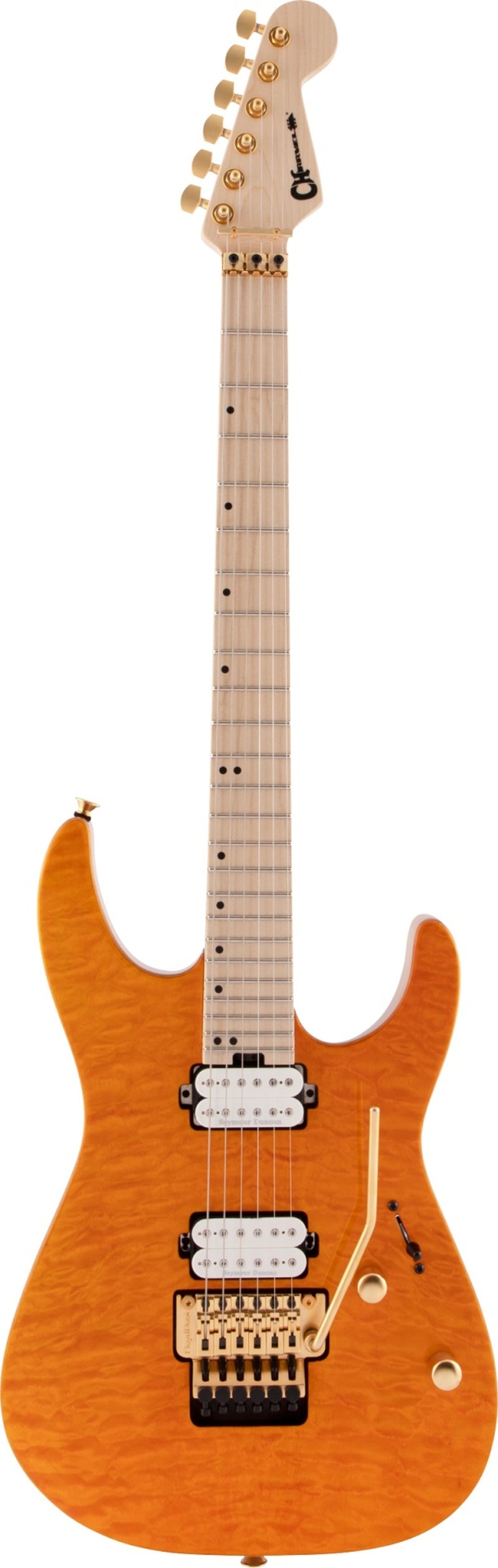

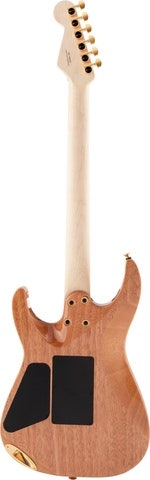

Charvel Pro-Mod DK24 HH FR M QM MN Dark Amber

Charvel’s Pro-Mod DK24 HH FR M Mahogany with Quilt Maple is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.


Loaded with premium features, this DK24 model has a sleek Dinky™ body constructed from mahogany with an exquisite quilt maple top finished in Dark Amber with satin gold hardware. The sculpted shredder’s cut heel and scalloped lower back bout make access to the upper registers seamless, while the bolt-on maple neck features graphite reinforcement for rock-solid stability. The silky-smooth hand-rubbed satin urethane finish on the back of the neck grants sublime playability, while the conveniently located heel-mount truss rod adjustment wheel makes for painless neck relief tweaks. Designed for speed, the 12"-16" compound radius maple fingerboard features comfortable rolled edges, 24 jumbo frets and offset black dot inlays.

Under the hood, the DK24 is ready to handle your heaviest riffs, tastiest leads or angelic clean tones with a Seymour Duncan® Full Shred™ bridge pickup and Seymour Duncan Alnico II™ Pro APH-1N neck pickup. Dial in the tonal spectrum that best suits playing with five-way blade switching, volume control (with 500K EVH® Bourns™ low friction potentiometer) and a no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through.

The Pro-Mod DK24 HH FR M Mahogany with Quilt Maple is also equipped with a recessed Floyd Rose® 1000 Series double-locking tremolo bridge system, providing super tuning stability with radical pitch-raising capability.
GENERAL

• Series    Pro-Mod
• Color    Dark Amber
• Number of Strings    6
• Orientation    Right-Hand

ELECTRONICS

• Bridge Pickup    Seymour Duncan® Full Shred™ SH-10B
• Neck Pickup    Seymour Duncan® Alnico II Pro™ APH-1N
• Pickup Color    White
• Controls    Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
• Pickup Switching    5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
• Pickup Configuration    HH

BODY

• Body Finish    Gloss
• Body Shape    Dinky™
• Body Material    Mahogany
• Body Top    Quilt Maple

HARDWARE

• Bridge    Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
• Hardware Finish    Satin Gold
• Tremolo Arm    Floyd Rose® 1000 Series Locking
• Tuning Machines    Charvel®-Branded Die-Cast
• Pickguard    None
• Control Knobs    Dome-Style
• Switch Tip    White
• Saddle Height Wrench    Yes

NECK

• Neck Material    Maple
• Neck Construction    Bolt-On with Graphite Reinforcement
• Neck Finish    Hand-Rubbed Satin Urethane
• Neck Shape    Speed Neck with Rolled Fingerboard Edges
• Neck Binding    None - Rolled Fingerboard Edges
• Scale Length    25.5" (64.77 cm)
• Fingerboard Radius    12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material    Maple
• Number of Frets    24
• Fret Size    Jumbo
• Nut Material    Floyd Rose® 1000 Series Locking
• Nut Width    1.6875" (42.86 mm)
• Position Inlays    Offset Black Dot
• Truss Rod Nut    Heel-Mount Truss Rod Adjustment Wheel
• String Trees    Floyd Rose® Retainer Bar
• Headstock    Licensed Fender® Stratocaster®
• Neck Plate    None - 4-Bolt Sculpted Heel

MISCELLANEOUS

• Strings    Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons    Standard
