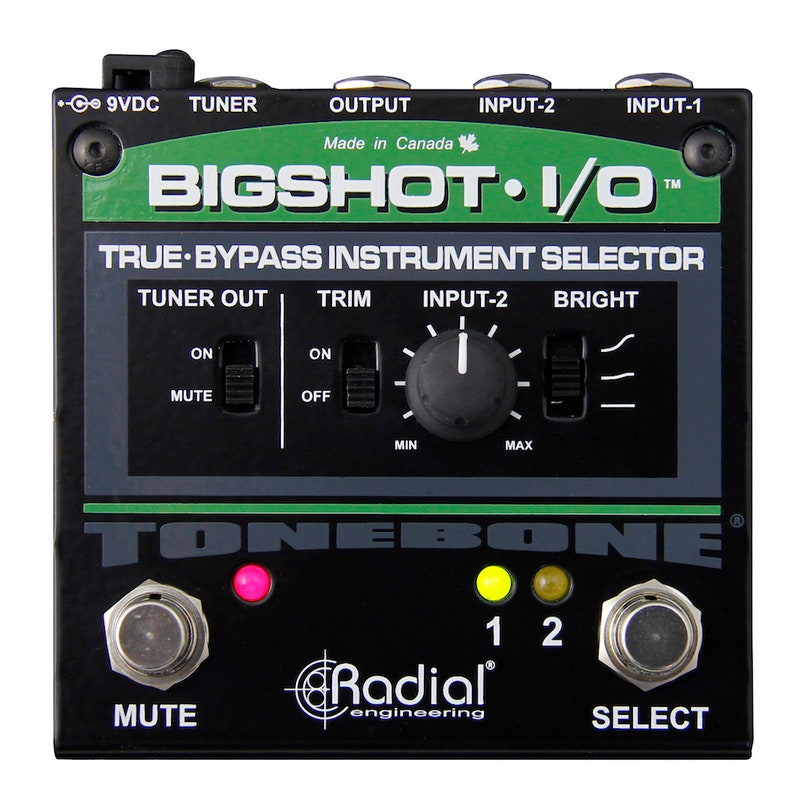

Radial Tonebone Bigshot I/O

100% Passive

True Bypass (via TRIM switch)

2 Instrument inputs

Separate tuner output

Volume control

Reduces output level of Input 2

Tuner Out switch: determines whether the tuner output is always active or only when the mute footswitch is pressed

TRIM switch to bypass the volume control and the Bright switch

3-Way bright switch to compensate for instruments that lack shine in the high frequencies

Mute foot switch

Select footswitch

Status LEDs

Metal housing

6.3 mm mono jack inputs / outputs

Powered by optional 9V DC power supply (2.1 x 5.5mm, polarity (-) inside) - not included

Battery operation not supported

The power supply is needed only for the status LEDs

Dimensions (L x W x H): 100 x 100 x 52 mm

Weight: 560 g

Made in Canada
