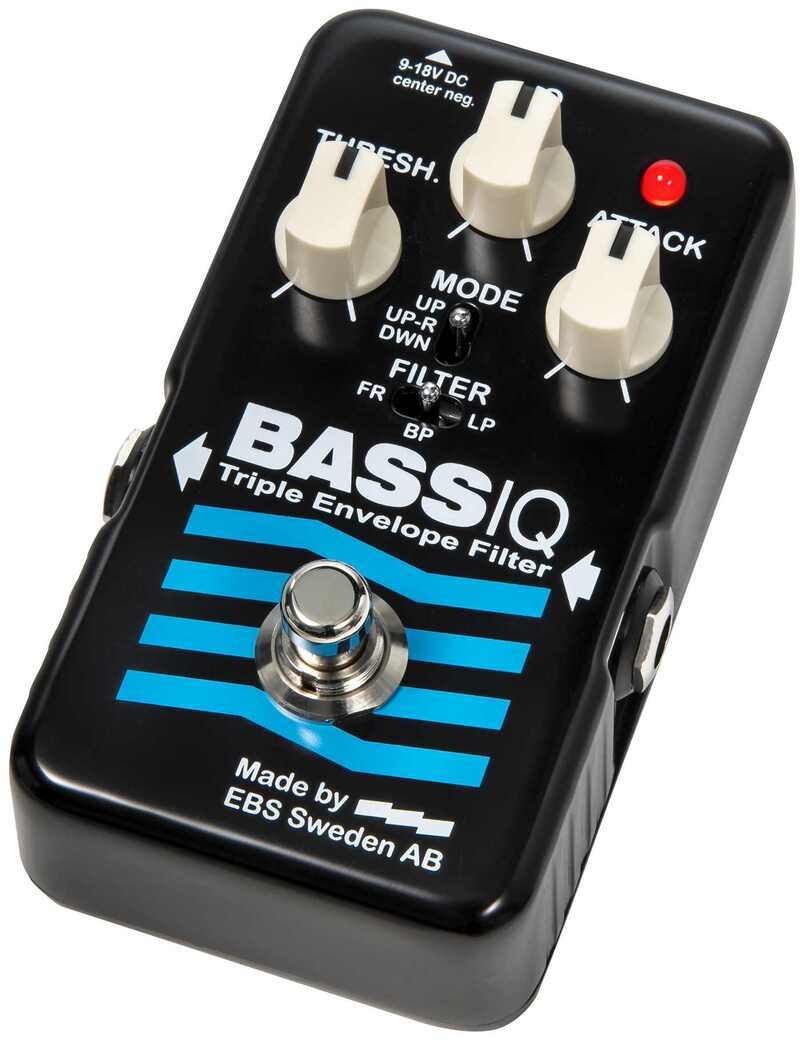

EBS BassIQ Blue Label

Nominal Input Level:  -10 dBv

Input Impedance:  1.8 Mohms

Output Impedance: 100 ohms

Dry Bandwidth +0/-2 dB:  20 - 20k Hz

Filter:
Range 100 - 2.5k Hz Q 0.7 - 15
Mode Down/Up-Range/Up
Type Low Pass, Band Pass, Full Range

Threshold: -50 - +6 dBv

Attack Time (80%): 50 ms - 2 s

Dimensions: W x H x D 2.6” x 4.5” x 1.9” (67 x 115 x 48 mm)

Weight: 315g (0.7 lb.)

Type: Analog Effect, Relay type Switching

Power Requirements: 9, 12 or 18 V DC, 55 mA max. Pedal shuts off below 6.0 V
