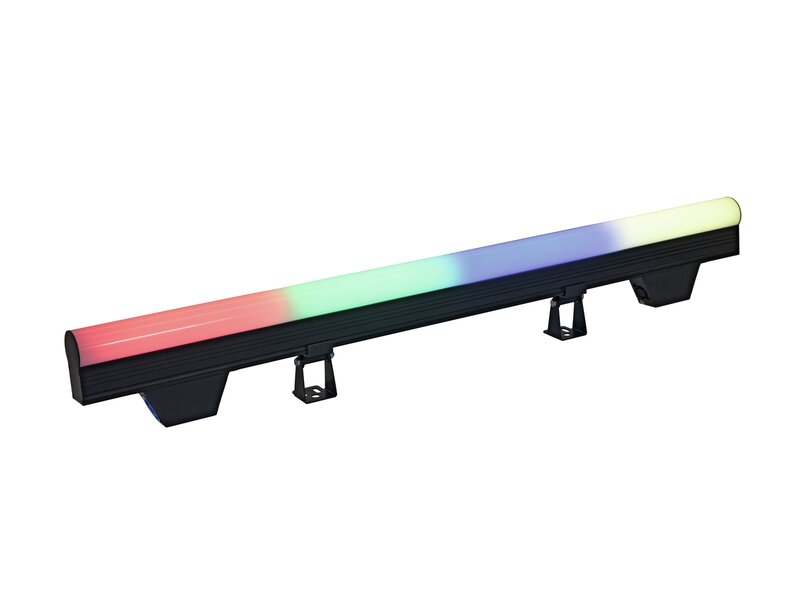

Eurolite LED PT-100/32 Pixel DMX Tube

DMX controlled pixel tube with RGB color mixing

Features:

• Tube with 96 high-power RGB LEDs (3in1) for washlight effects
• 32 individually controllable pixels (illumination units with 3 LED each)
• Direct color selection for 17 preset colors
• Color change, brightness adjustment and strobe effect
• Built-in auto and music show programs
• DMX and power terminals intelligently designed for easy wiring
• Control panel with LED display for easy configuration
• Metal housing with swivel mounting brackets
• Mains input and output for power linking up to 8 units
• LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3; 5; 8; 48; 96 CH mode
• The device is cooled by passive convection
• Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function
• Preprogrammed in LED PC-Control 512; Light Captain

Specifications:

• Power supply:    100-240 V AC, 50/60 Hz
• Power consumption:    30 W
• IP classification:    IP20
• Power connection:    Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output:    1 x P-Con (gray), mounting version
• Lamp type:    LED lamp
• LED:    96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Flash rate:    20 Hz
• DMX channels:    3; 5; 8; 48; 96
• DMX input:    3-pin XLR (M) mounting version
• DMX output:    3-pin XLR (F) mounting version
• Cooling:    Passive convection
• Control:    Stand-alone; DMX; Sound to light via Microphone; Master/slave function; LED PC-Control 512; Light Captain
• Beam angle:    120°
• Beam angle (1/2 peak):    120°
• Housing color:    Black
• Display type:    4 digits 7-segment LED display
• Dimensions:    Length: 99,9 cm
• Width: 5,9 cm
• Height: 15,3 cm
• Weight:    2,10 kg
• Noise classification:    Class 0 (no noise at all)
