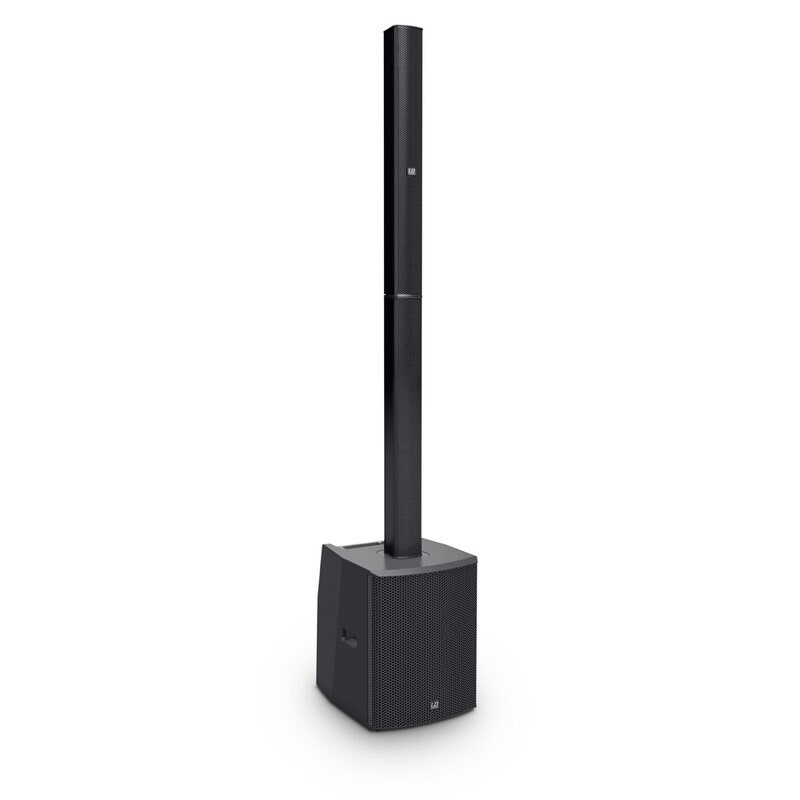

LD Systems MAUI 28 G2

A complete sound system to carry in one go along with your instrument: that’s the MAUI 28 G2. Simply put the two column elements in the padded shoulder bag, grab the subwoofer with one hand and your guitar or keyboard with the other. Assembling the all-in-one PA and monitoring system with its custom plug-and-play multipin connectors is just as easy. The MAUI 28 G2 delivers unmatched audio quality and astonishing coverage from a compact, elegant package. It has been engineered with years of experience in column systems to provide a user-friendly solution for medium sized gigs and installations.



The MAUI 28 G2 sports a complement of two 8” woofers, sixteen 3” fullrange transducers and dual 1” neodymium compression drivers. Producing a punchy low end, balanced midrange and silky smooth highs, they are driven by a lightweight Class D power stage with a mighty 2,000 watts peak output. LD Systems’ DynX® DSP technology ensures top performance and distortion-free audio at all times. It includes a multiband limiter to prevent clipping, EQ, a compressor and a 3-way crossover for perfect time alignment.



The line array configuration of the MAUI 28 G2 results in extended coverage, high feedback resistance and extra wide dispersion that lets you perform without the need for separate monitors. The high frequency drivers’ waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a uniform pattern so your audience hears you the same from front to back row.



The MAUI 28 G2 puts you in control with a built-in 4-channel mixer, system presets for mono or stereo setup and Bluetooth® audio streaming. If you’re a singer-songwriter, solo entertainer, DJ or play in a small combo you’ll appreciate extraordinary audio performance and convenient portability. The column and sub can be placed apart making the system highly flexible and a great choice for installed sound applications, as well. With a selection of smart transport accessories and dedicated mounting hardware the MAUI 28 G2 is a comprehensive solution down to the smallest details.



Specs:

Max. SPL (peak): 126dB

Frequency response: 45 - 20000Hz

Dispersion (H x V): 120° x 20°



Low/mid driver dimensions: 2 x 8"

Woofer magnet: Ferrite

Woofer voice coil: 2"



Midrange size: 16 x 3"

Midrange magnet: Ferrite

Midrange voice coil: 1"



Tweeter dimensions: 2 x 1"

Tweeter magnet: Neodymium



Loudspeaker inputs: 1

Speaker input connections: Custom-made multipin



Amplifier: Class D

Amplifier Output System (RMS): 1000W

Amplifier Output System (Peak): 2000W

Protection circuits: thermal overload, short circuit, DC protection, Multiband limiter

Cooling: Convection

Operating Temperature: 0 - 40°C

Hunidity range: 0% - 80% rel. (non condensing)°C

Controls: Mono/stereo switch, Hi-Z Level, Main Level, Line Level, sub level, MP3/Bluetooth level, Bluetooth button, Power

Indicators: signal, on, mono, limit, Setup, protect (protection circuit engaged), stereo

Power connector: IEC (power cable included)

Operating voltage: 100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatic conversion)

Power consumption Off / On / Max.: 0/11/600W



Line inputs: 2 x stereo

Line input connectors: RCA, XLR/6.3 mm jack

Line outputs: 2 (1x System Out, 1x Sub Out)

Line output connectors: XLR

Mic inputs: 1, XLR/6.3 mm jack

MP3 inputs: 1

MP3 input connectors: 3.5 mm jack

Hi-Z inputs: 1

Hi-Z input connectors: 6.3 mm Jack

Loudspeaker outputs: 1

Speaker output connections: Custom-made multipin



Bit depth AD/DA converter: 24bit

Internal sampling frequency: 48kHz

Signal/noise ratio: 100dB
