LD Systems DAVE 12 G3

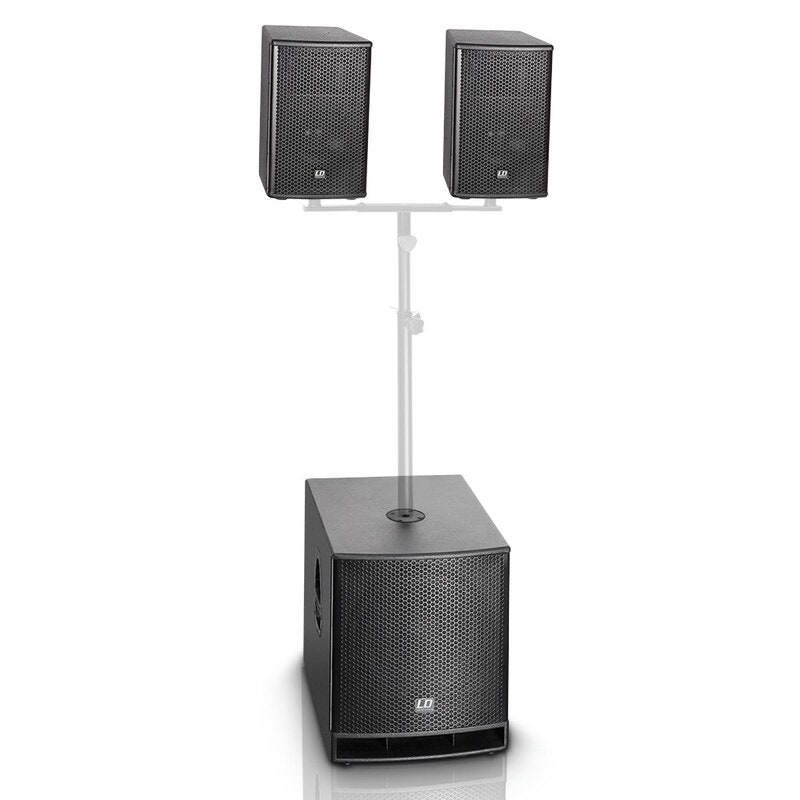

LD Systems DAVE 12 G3 - Active PA-System with DSP

The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 1x300W + 2x120W of continuous power.

The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The professional full range of features of the DAVE 12 G3 includes rugged multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by ± 13,5° max. in seven increments.

Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.



    Type: active
    Max. SPL Continuous: 119 dB
    Max. SPL Peak: 130 dB
    Frequency range: 40 - 19,000 Hz
    Dispersion angle (H x V): 90 x 40°

Subwoofers

    Woofer size: 12"
    Woofer size: 304.8 mm
    Woofer magnet: ferrite
    Woofer brand: custom made
    Woofer voice coil: 2,5"
    Woofer voice coil: 63.5 mm
    Cabinet type: bass reflex
    Cabinet material: 15 mm plywood
    Cabinet surface: textured coating
    Subwoofer width: 435 mm
    Subwoofer height: 500 mm
    Subwoofer depth: 540 mm
    Subwoofer features: Threaded flange (M20), LD Systems Evolutive handles

Mid/Hi System

    Midrange size: 6,5"
    Midrange size: 165.1 mm
    Midrange magnet: ferrite
    Midrange brand: custom made
    Midrange voice coil: 1,75"
    Midrange voice coil: 44.5 mm
    Horn: CD horn
    Tweeter size: 1"
    Tweeter size: 25.4 mm
    Tweeter magnet: ferrite
    Tweeter brand: custom made
    Tweeter voice coil: 1"
    Tweeter voice coil: 25.4 mm
    Mid/Hi system impedance: 4 ohms
    Speaker inputs: 1
    Speaker input connections: Speakon compatible
    Mid/Hi system cabinet type: closed
    Mid/Hi system cabinet material: 15 mm plywood
    Mid/Hi system cabinet surface:: textured coating
    Mid/Hi system width: 250 mm
    Mid/Hi system height: 400 mm
    Mid/Hi system depth: 250 mm
    Mid/Hi system features: Ergonomic recessed handles, SM707 stand support 36 mm

Amplifier module (integrated in subwoofer)

    Amplifier: Class A/B
    Amplifier power system (RMS) 540 W
    Amplifier power system (peak): 1080 W
    Amplifier power subwoofer (RMS): 300 W
    Amplifier power subwoofer (peak): 600 W
    Amplifier power Mid/Hi (RMS 4 ohms): 2 x 120 W
    Amplifier power Mid/Hi (peak 4 ohms): 2 x 240 W
    Protection: Short circuit, limiter, overload
    Cooling System: volume-controlled fan
    Controls: Power, Sub Level, Subwoofer Phase Reverse, Volume
    Indicators: On/Off Limit, Power, Protect (protective circuit active), Signal
    Power supply: transformer
    Line inputs: 2
    Line input connectors: RCA, XLR/ 6.3 mm jack (combo)
    Speaker outputs: 2
    Speaker output connections: Speakon compatible
