LD Systems CURV 500 PS

The first truly portable array, the compact CURV 500 is fully scalable with up to four interlocking aluminium unibody satellites operating on a SmartLink® plug and play adapter. Measuring 12 x 12 cm only, the array elements feature LD Systems' WaveAhead® technology with single 4" and triple 1" drivers each for high definition audio with powerful punch and superb balance.

The ported 10" subwoofer base includes the CURV 500's class D amplification with limiter, short circuit, thermal and overcurrent protection and a 4-channel mixer with 16 digital effect presets and Bluetooth® technology. It sports comprehensive connectivity on combo and speakON compatible connectors, 4 digital system presets, an M20 pole mount and 3 ergonomic handles for easy portability. Available in 3 sets for both live and installed sound applications LD Systems' lightweight CURV 500 provides extended vertical and horizontal coverage and impressive all-in-one convenience.

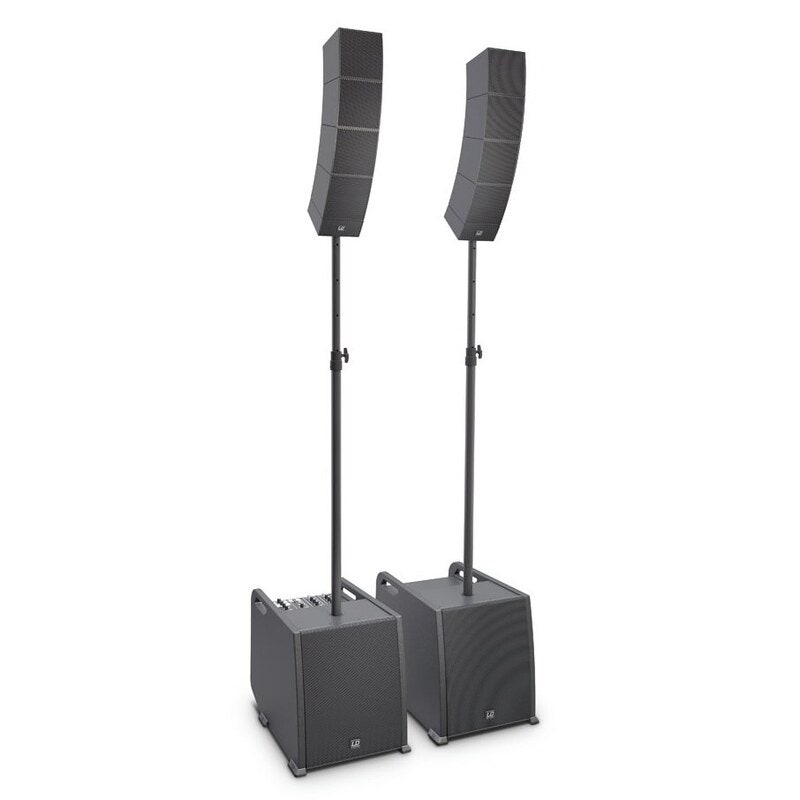

CURV 500 PS:Delivering 920 watts RMS and a peak SPL of 134 dB the CURV 500 Power Set includes 2 SmartLink® adapters plus 2 loudspeaker poles and cables.

Type: Portable Array System
Rated System Power (RMS): 920 W
Number of Array Satellites: 8
Number of Smartlink® Adapters: 2
Number of Subwoofers: 2
Max. SPL (continuous): 128 dB
Max. SPL (peak): 134 dB
Subwoofer: 10" bass reflex
Satellite: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Frequency response: 47 Hz - 20 kHz
Dispersion (H x V): 110° horizontal, 10° vertical per satellite
Amplifi cation: Class D
Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W, Array Satellites: 2 x 160 W / 2 x 640 W ; Subwoofer Extension: 300 W / 1200 W
Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 fl ange, 3 ergonomic handels
Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level
Subwoofer Indicators: Signal, Limit, Bluetooth®, Power
Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6,3mm Jack Combo), 1x Mic (XLR/6,3mm Jack Combo), 2x Line (XLR/6,3mm Jack Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)
Subwoofer Material: Plywood
Subwoofer Surface: PA Painting
Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille
Array Satellite Material: Diecast Aluminium
Array Satellite Surface: Powder coating
Smartlink® Adapter Features: dual 16 mm fl ange, 2x M6 thread for optional wall mount
Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix
Smartlink® Adapter Material: Diecast Aluminium
Smartlink® Adapter Surface: Powder coating
Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm
Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
Subwoofer Weight: 16.5 kg
Array Satellite Weight: 1.7 kg
Smartlink® Adapter Weight: 0.6 kg
