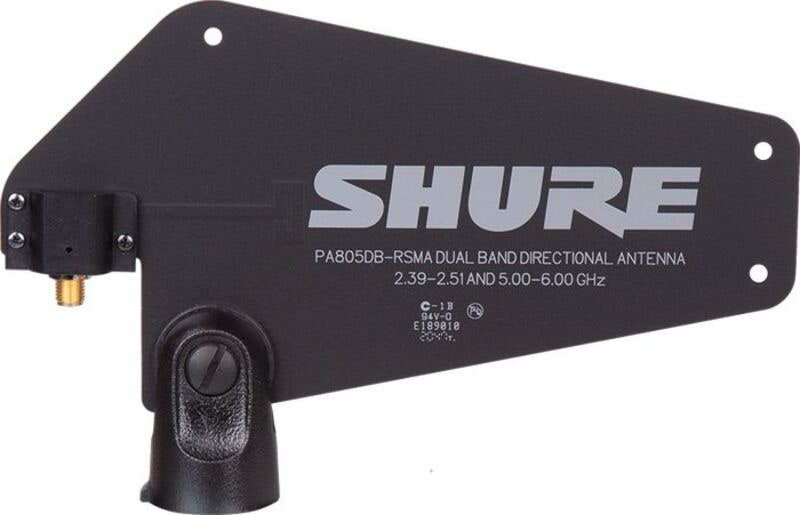

Shure PA805DB-RSMA Passive Directional Antenna

Shures nya PA805DB-RSMA Dual Band Passive Directional Antenna, förbättrar mottagningen av halvrack GLXD4R+ mottagare och GLXD+FMDB Dual Band Frequency Manager med upp till 8dB. Antennen har även förbättrad avvisning av störningar från källor på 2,4 och 5,8 GHz: 24 dB fram-till-bak-förhållande för förbättrad avvisning av signaler utanför axeln. Shure PA805DB-RSMA kan målas med icke-metallisk färg (utan att skadas) för att matcha monteringsytan.

Tillverkarens specifikationer

Compatibility:	With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
	Without Frequency Manager: Up to 4 compatible systems in typical setting, and up
	to 8 under ideal conditions
System Operating Range:	Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under
	ideal conditions.Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
Transmit Mode:	Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
Audio Frequency Response:	20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range:	120 dB, A-weighted
RF Sensitivity:	(-88) dBm, typical
Total Harmonic Distortion:	0.07%, typical
RF Output Power:	10 mW E.I.R.P. max
Operating Temperature Range:	(-18°C) (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.A17v
Storage Temperature Range:	(-29°C) (-20°F) to 74°C (165°F)
Polarity:	Positive pressure on microphone diaphragm (or positive voltage applied to tip
	of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of
	low-impedance output) and the tip of the high impedance 6,35 mm output.
Battery Life:	Up to 12 hours



Inkluderar även: 3m RSMA-kabel.
