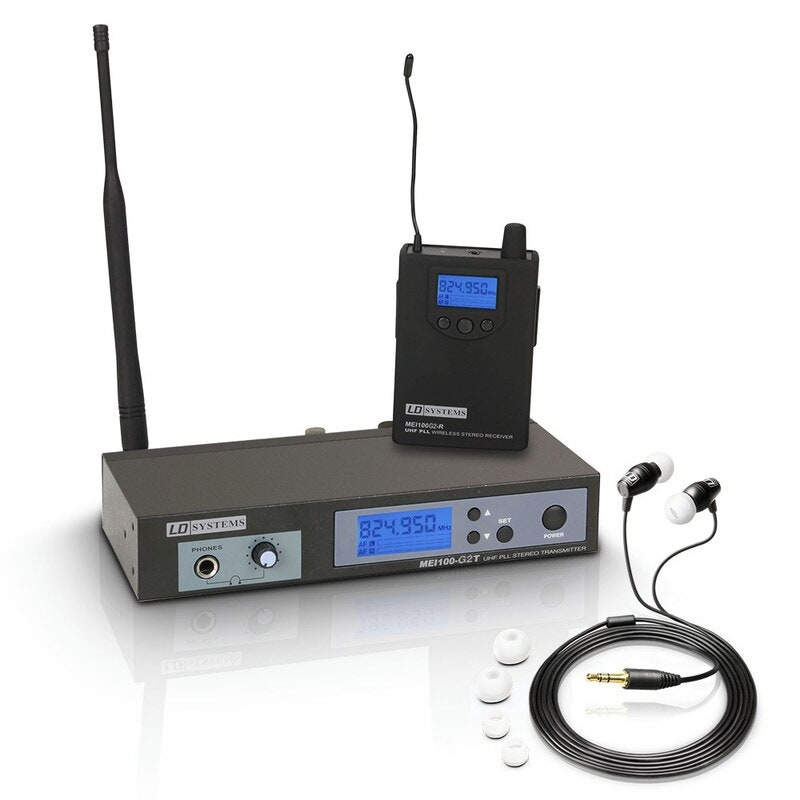

LD Systems MEI 100 G2

The LD Systems MEI 100 G2 is an advanced 96 channel UHF in-ear monitoring system delivering outstanding sound with extended dynamics in both the 823 - 832 and 863 - 865 MHz bands. Switchable mono and stereo modes select the perfect monitoring setting for live music, theatre and voice applications while an input limiter has been integrated for consistent, distortion-free sound reproduction from 80Hz - 15 kHz with a high S/N ratio and low THD. The LD MEI 100 G2 allows the use of up to 5 systems simultaneously.

Both transmitter and receiver feature multifunction displays providing all the important system data. Operation time exceeds 10h with high quality batteries. The MEI 100 G2 package includes high quality earphones, a 19” rackmount kit and a rugged ABS plastic carrying case.

* license free: ISM-Band license free in Europe, please check duplex gap on a country-by-country basis

Model name: LDMEI100G2BPR
Product type: Belt pack receiver
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Transmission method: FM, stereo
Frequency response: 80 Hz - 15 kHz ± 3 dB
Audio outputs: 3.5 mm jack
Max. audio output level: 100 mW
Controls: Up, Down, Set, Volume
Indicators: LC display, RF (LED)
Power supply: 2 x 1.5 V AA
Operating time: > 10 hrs.
Width: 65 mm
Height: 95 mm
Depth: 25 mm

Model name: LDMEI100G2T
Product type: Transmitter
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Transmission method: FM, stereo
RF output: 10 mW
Frequency response: 80 Hz - 15 kHz ± 3 dB
Inputs: 2
Input connections: XLR/ 6.3 mm jack (combo)
Input impedance: 8,5 kOhm
Antenna connector: TNC
Controls: up, down, set, power, volume headphone, mono/stereo, AF level (left/right)
Indicators: LC display
Power supply: 12 - 18 V DC
Width: 212 mm
Height: 38 mm
Depth: 90 mm
Accessories (included): Antenna, power supply, headphones, 19" Rackmount Kit
