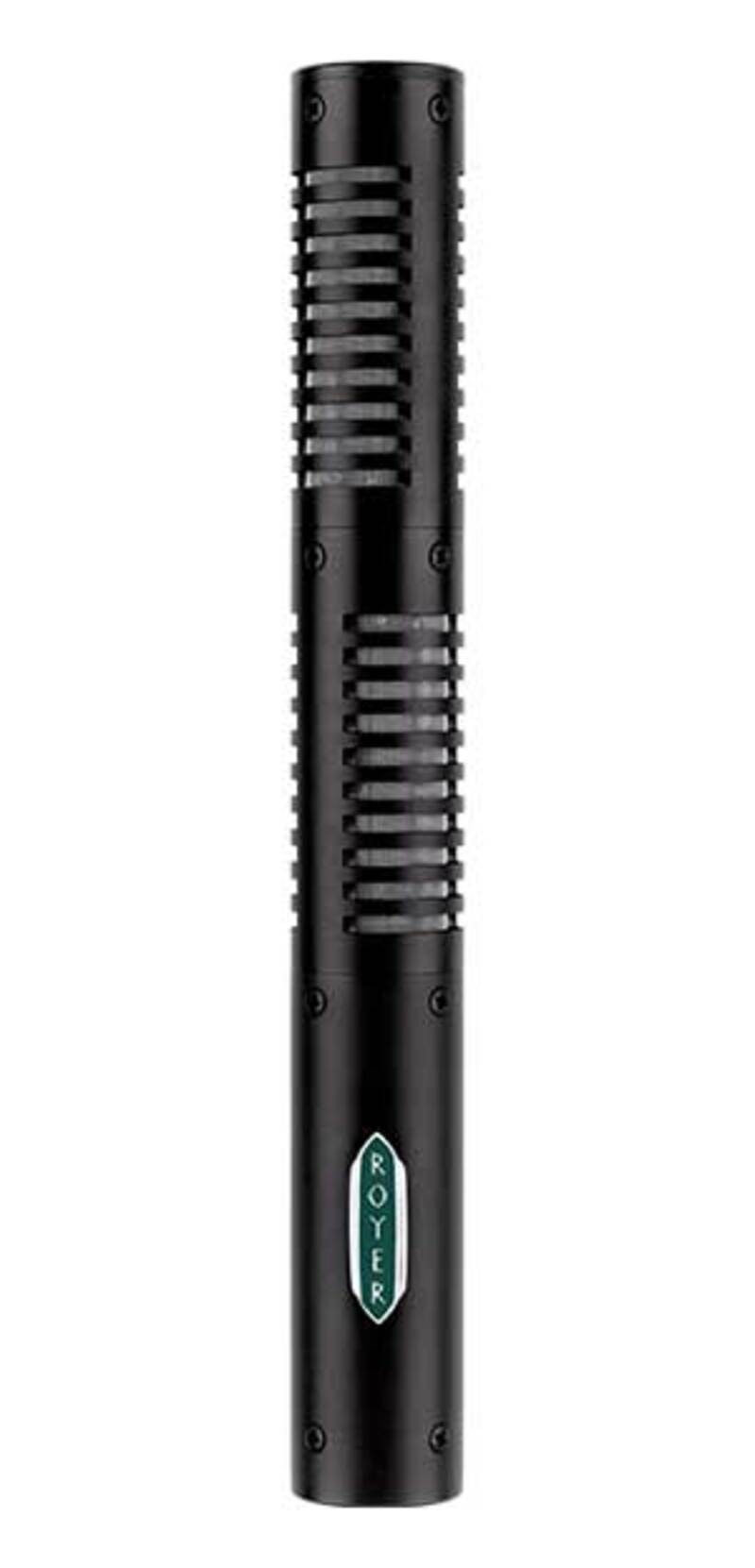

The SF-12 stereo coincident ribbon microphone combines high quality audio performance with outstanding stereo separation and imaging. It is a modern ribbon design with no audible diffraction effects or cavity resonance. An SF-12 is actually two matched ribbon microphones placed one above the other; each aimed 45 degrees from center in the classic Blumlein configuration. The frequency response is excellent regardless of the angle of sound striking the ribbons and off-axis coloration is negligible.
The SF-12 utilizes two 1.8-micron ribbons, each weighing approximately 1/3 milligram and producing superb transient response. The two ribbon transducers are magnet/pole piece structures that produce a wide, uniform frequency response with no substantial peaks or dips. The case is ingot iron and forms part of the magnetic return circuit, an effective system with low leakage flux which accounts for the relatively high sensitivity in a trim package. The SF-12’s extension cable comes with a Y adapter that splits into separate 3-pin male XLR connectors labeled “Upper” and “Lower,” for the upper and lower capsules of the microphone (when held vertically).
- Acoustic Operating Principle: Electrodynamic pressure gradient
- Polar Pattern: Symmetrical figure-8
- Generating Element: 1.8-micron aluminum ribbon
- Frequency Response: 30-15,000 Hz +/- 3dB
- Sensitivity: > -52 dBv Re. 1v/pa
- Output Impedance: 300 Ohms @ 1K (nominal)
- Rated Load Impedance: >1500 Ohms @ 300 nominal impedance
- Maximum SPL: >130dB
- Output Connector: Male XLR 5 pin (stereo*)
- Dimensions: 206 mm L X 25 mm W (8" L X 1" W)
Weight: 369 Grams (13 Oz)
- Finish: Matte Black Chrome, Dull Satin Nickel (optional)
