Artikelnummer 1072659

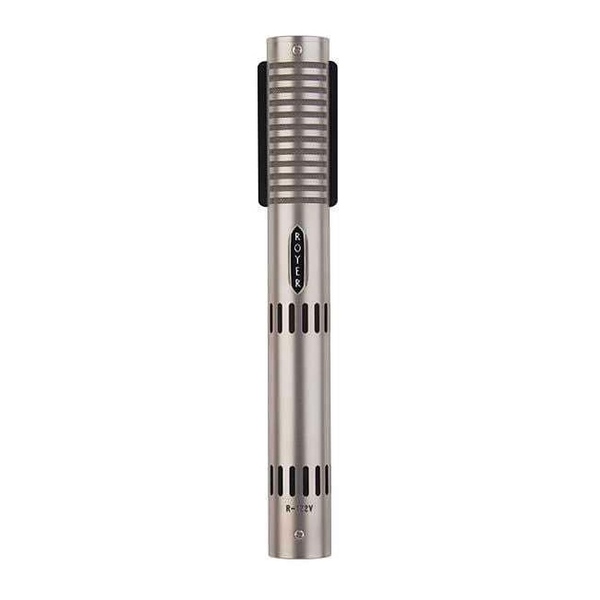

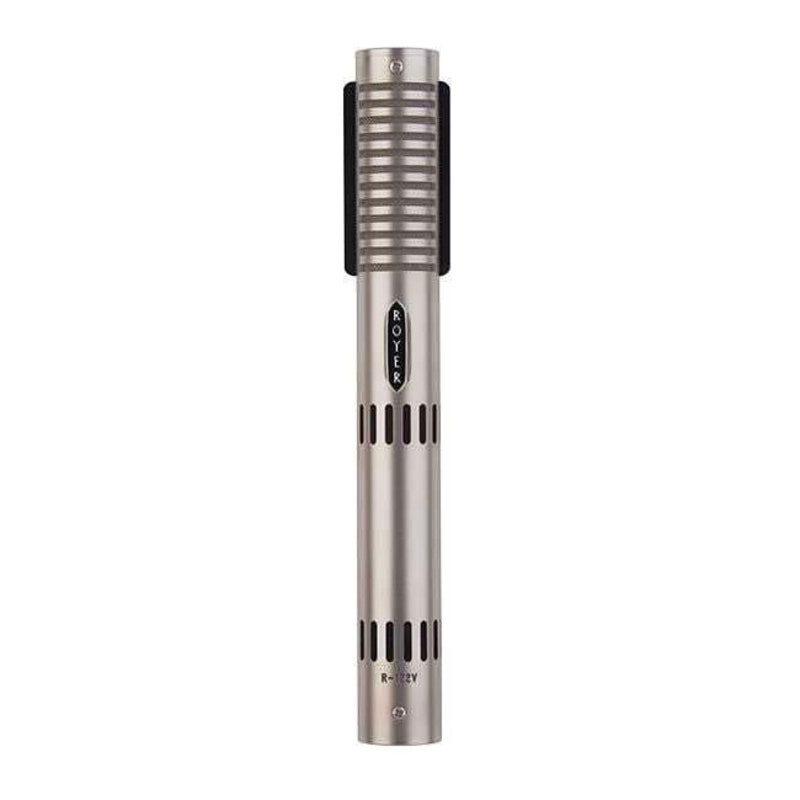

Royer Labs R-122V

Vacuum Tube Ribbon Microphone

49772,00 kr/st
Lägg i varukorgen

Ej i lager, kontakta oss för leveranstid

Specifications

  • Vacuum tube electronics provide high output capability, optimal impedance to the ribbon element and low output impedance
  • Extremely low self-noise
  • Operates from a dedicated power supply
  • High SPL capabilities for electric guitar and percussion instruments
  • Absence of high-frequency peaks, “ringing” and phase shifts
  • Ribbon element unaffected by impedance/load, heat or humidity
  • Very low magnetic leakage
  • Equal sensitivity from front or back of element
  • Consistent frequency response regardless of distance
  • Rear side of mic records slightly brighter when three feet or closer to sound source
  • Acoustic Operating Principle: Electrodynamic pressure gradient with vacuum tube
  • electronics.
  • Vacuum Tube: JAN mil-spec 5840W pentode wired in triode configuration
  • Polar Pattern: Figure-8
  • Generating Element: 2.5-micron aluminum ribbon
  • Magnets: Rare Earth Neodymium
  • Frequency Response: 30 -15,000 Hz +/- 3dB
  • Sensitivity: -36 dB (re. 1v/pa +/- 1 dB)
  • Self-Noise: < 18 dB
  • Output Impedance: 200 Ohms, balanced
  • Rated Load Impedance: 1 K-Ohm
  • Maximum SPL: >135dB SPL @ 20 Hz
  • Power Requirements: Plate supply: 135 VDC @2ma, Filament supply: 6 VDC@ 150ma from dedicated power supply.
  • Dimensions: 206mm L, 25mm W (8 1/8 ” L, 1″ W).
  • Weight: 300g (10.9 oz )
  • Finish: Dull Satin Nickel/Matte Black Chrome optional

Applications

  • Orchestral miking, close and distant
  • Strings – solo & sections
  • Acoustic Piano, Harp, etc.
  • Electric Guitar
  • Acoustic Guitar
  • Vocals, Commercial Broadcast, Voice Over
  • Brass, Horn Sections
  • Drum Overheads, Room Miking
  • Percussion Instruments
