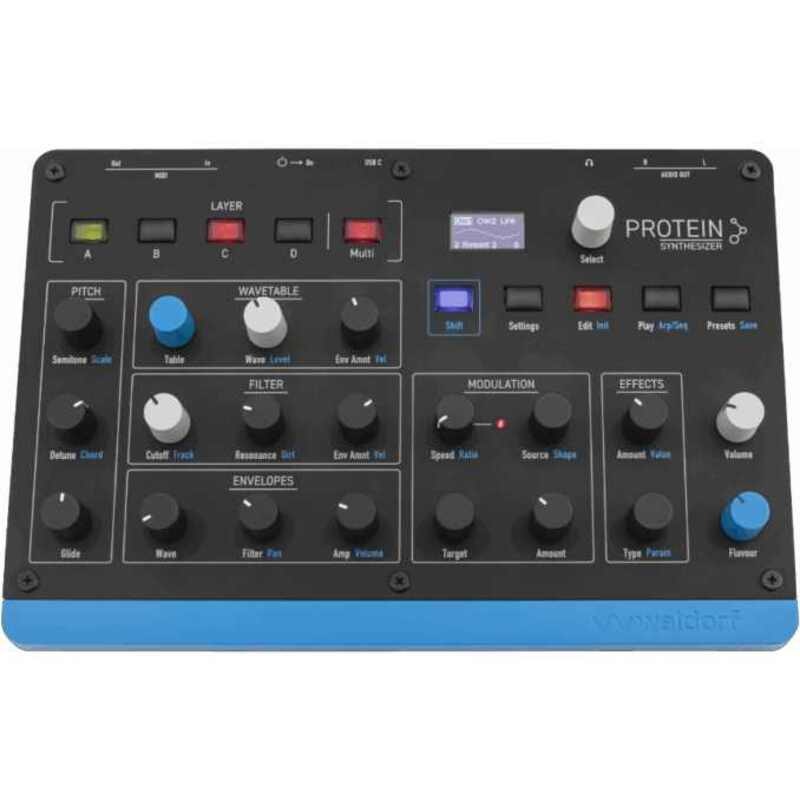

Waldorf Protein

Authentic Wavetable Synthesizer
Oscillators
• Two oscillators based on unique Waldorf Microwave ASIC chip.
• Internally running with 250 kHz sampling rate to match original ASIC sampling rate.
• Modeling of digital-to-analog converters for each voice (DAC).
• Unique digital noise generator based on ASIC technology.
Wavetables
• All original wavetables of Microwave 1 based on the original coding and bit-identical to original.
• Including algorithmic and speech wavetables.
• Beautiful recreation of 8-bit quantization and aliasing.
• Full waveform catalogue of original Microwave.
Filter
• Faithful modeling of CEM analogue filters.
• Adjustable de-calibration of cutoff and resonance to model detuned hardware.
• Cutoff and resonance modulations.
• Additional „Dirty“ types: Noise, crackle, click, geiger and bursts.
Modulation
• 3 Envelopes
• 2 LFOs with tempo sync and sample & hold
• 8 slot modulation matrix
• Poly-aftertouch capable
• MPE modulation sources.
Effects
• Two effect slots
• Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo
Voices
• 8 voice polyphony
• 4 timbral layers
• Stacked, round robin and MIDI-split layer-modes.
• Mono & Legato modes
Performance features
• Advanced Arpeggiator
• Step-sequencer with up to 32 steps
• Chord & Scale modes
• MPE Compatible
• MIDI CC Learn
Patches
• Over 150 factory patches
• Capacity of 250 patch memory slots
• Category filter for patch list
• Import- and export of patches via MIDI Sysex
Connections
• Stereo Audio Out with 6.35 mm jacks with optional mono and TRS stereo connections
• Headphones mini TRS output
• DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
• USB Type C for power supply and USB MIDI connection
• Firmware updates via USB
Overall
• Sturdy metal front plate on a colorful plastic case
• Dimensions: 252 mm wide by 170 mm depth by 48 mm height (including controls)
• Weight: 0.9 kg
• Power Supply via USB (not in the box)
What’s In the Box?
• Waldorf Protein Synthesizer
• Two MIDI adapters: mini TRS to DIN sockets
• USB C to C cable
• Printed Quick Start Guide
