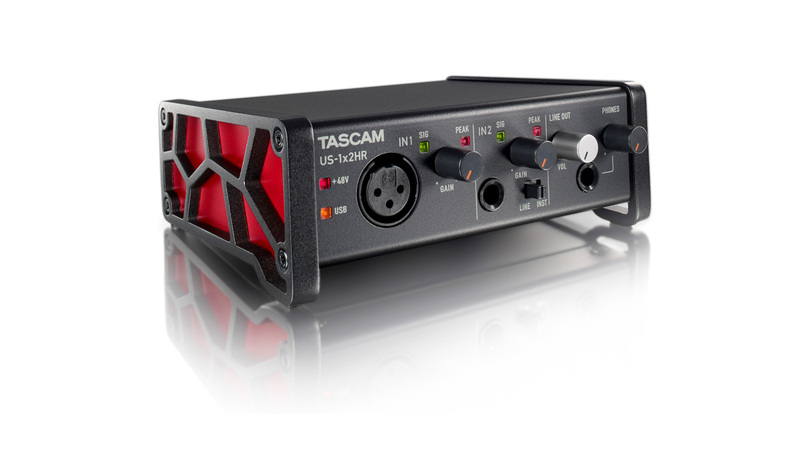

Tascam US-1x2HR

Features at a glance

• Advanced version of our popular US-1x2 with even better sound quality
• Provides two audio inputs and two audio outputs to a Windows or Mac computer or iOS device
• Audio resolution up to 192 kHz / 24 bit
• USB Audio Compliance 2.0 for iOS connection

Hardware features

• One XLR microphone input with switchable phantom power
• One 6.3-mm TRS analogue input selectable between line level (balanced) and instrument level (unbalanced, for direct coonnection of a guitar or bass)
• Two line inputs with RCA connectors on the rear can be used instead of the front inputs
• One high-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amp with ultra-low noise (EIN: –128 dBu)
• Wide input gain range of 58 dB, ideal for dynamic microphones
• Stereo line output
• Direct monitor option for low-latency monitoring
• Headphones output delivering 18 mW per channel
• Independent level controls for line and phones outputs
• USB bus-powered for mobile recording

• Rugged aluminum body
• Angled industrial design for ease-of-use on a desktop

Software features

• In-house developed driver for Windows devices ensures stable operation with low latency
• The buffer size for Windows can be selcted up from 4 samples to facilitate a recording environment with ultra-low latency
• Each input can be switched on/off individually
• Input monitor mode can be selected between stereo and mono
• A loopback function allows two audio channels from the computer to be merged with the input signals and send this mix to the streaming or communication software
  • Input and computer signals can each be selected between stereo and mono
  • A slider lets you adjust the broadcast level
• Switchable auto power save mode to reduce battery consumption on the laptop/tablet computer in mobile use
• Automatic update function available for software, driver and firmware updates (you can install new updates with the press of a button)
• Bundled with Cubase LE and Cubasis LE3, IK Multimedia SampleTank 4 SE and Antares Auto-Tune Unlimited (free 3-month subscription)
• Compatible with major DAW software
