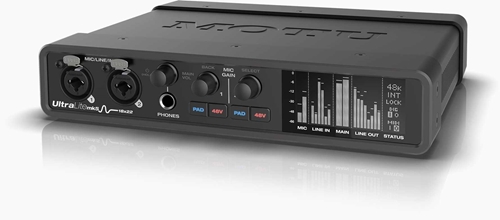

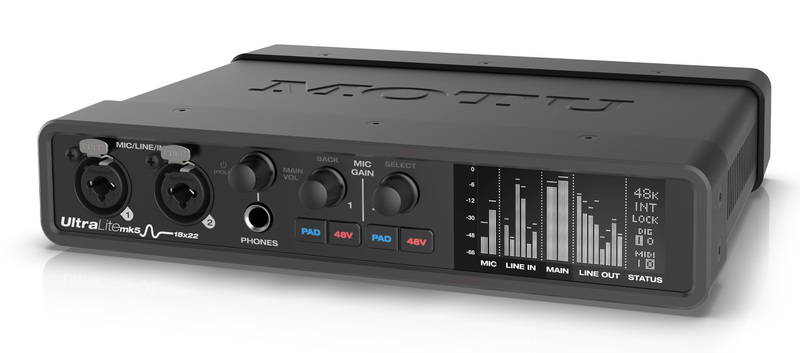

MOTU UltraLite mk5

UltraLite-mk5 Feature Highlights

• 18 x 22 USB audio interface with DSP, mixing and effects
• Superb analog audio performance driven by ESS Sabre32 Ultra™ DAC Technology
• Ultra-low latency for host software processing
• Precision front-panel metering for all analog I/O with high-resolution OLED display
• 2x mic/line/hi-Z guitar inputs on combo XLR/TRS
• Individual preamp gain and 48V phantom power for each mic input
• Measured -129 dB EIN on mic inputs
• 10x balanced, DC-coupled 1/4-inch TRS analog outputs with 125 dB dynamic range
• Hardware (direct) monitor mixing for each analog output pair (6 mix busses)
• 6x balanced 1/4-inch TRS analog inputs with measured 120 dB dynamic range
• 1x optical digital I/O (8-channel optical or 2-channel TOSLink)
• 1x stereo RCA S/PDIF digital I/O
• 1x headphone out (driven by ESS converters) with independent volume control
• MIDI in and out/thru
• Precision boost for all analog inputs and trim for all analog outputs in 1 dB steps
• Wi-Fi control from CueMix 5 app on multiple mobile devices (via a USB-connected computer on the same network)
• Network management features (discovery for multiple devices on the network and password protection for each device)

• Support for 44.1 to 192 kHz sample rates
• DC-coupled TRS outputs for CV control of modular synths from a host DAW
• USB audio class compliant for plug-and-play operation on Mac (no driver required)
• Windows driver with 2.4 ms Round Trip Latency (32 sample buffer at 96 kHz)
• Mac driver (optional, for 2.4 ms RTL@32/96 kHz and loopback feature)
• iOS compatible (USB audio class compliant)
• Loopback for capturing host output, live streaming, and podcasting
• Guitar re-amping with near-zero loop-thru to record the dry guitar signal and mic'd amp simultaneously
• Control room features include Talkback, A/B Monitor Select, and Monitor Grouping
• DSP-driven 22 x 6 monitor mixer (separate monitor mix for each analog output pair)
• On-board effects including reverb, 4-band parametric EQ and dynamics
• Rugged steel construction
• CueMix 5 app to control mixing and settings from your Mac, PC or iOS device
• MOTU Performer Lite 11 workstation software included
• 100+ instruments (in Performer Lite)
• Over 6 GB of included free loops, samples and one-shots
• Rack-mountable as a single unit or side by side (mounting kits sold separately)
• Two-year warranty
