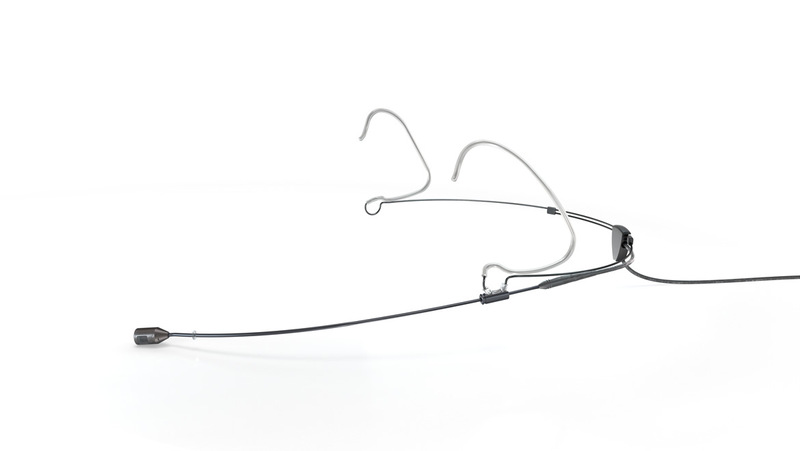

DPA 4488 CORE Directional Headset Microphone Black

Key Features:

• One-size-fits-all - head sizes and shapes
• Comfortable 3-point grip - above, below, behind the ear
• Easily adjustable - frame size, boom length, placement
• 90° adjustable cable guide - keeps cable out of sight
• Non-reflective PVD surface on headset frame, boom, capsule

Specifications:

• Directional pattern: Cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
• Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range - Legacy: Typ. 97 dB
• Dynamic range - CORE: Typ. 111 dB
• Max. SPL, THD 10%: 144 dB SPL peak
• Rated output impedance: 30 - 40 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
• Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter, With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Color: Black, beige or brown
• Weight: 14 g (0.5 oz) incl. Cable and MicroDot connector
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 11 mm (0.5 in)
• Cable length: 1.2 m (3.9 ft)
• Cable diameter: 1.6 mm (0.06 in)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
