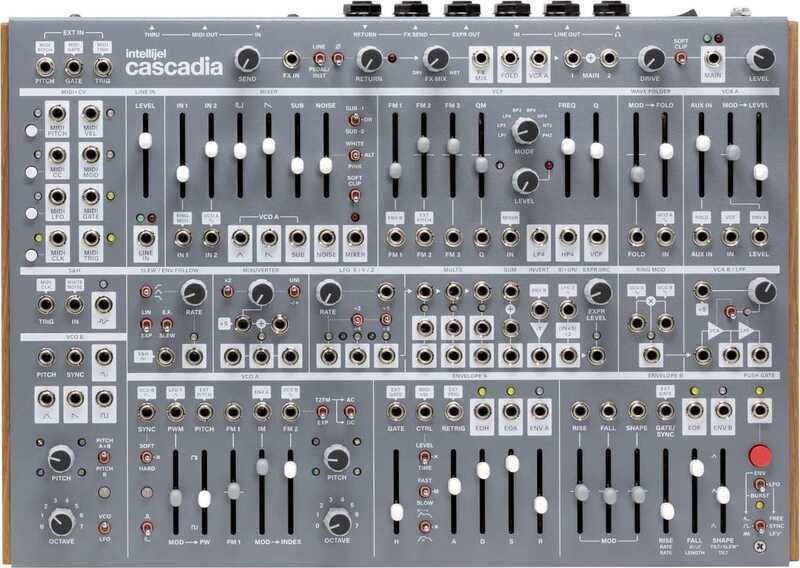

Intellijel Cascadia Dark Grey

Two Precision Analog VCOs

• VCO A is Thru-zero FM-ready with a dedicated Index VCA, Sub Oscillator, PWM and Soft/hard sync.
• VCO B is a combo VCO/LFO with 4 simultaneous outputs

Six Channel Waveform Mixer

• Two patchable (normalled) inputs
• Noise generator with multiple algorithms.
• Optional asymmetric soft clipping on the mix output.

Liquid-Sounding, Cascaded 4-Pole Multimode Filter

• Eight Modes: LP1, LP2, LP4, BP2, BP4, HP4, NT2, Phazor.
• Additional dedicated outputs for LP4 and HP4.
• Input Level Knob for fine control of filter input and resonance balance and added drive.
• Multiple FM inputs and a QM input, all with attenuators.

Wavefolder Circuit

• West Coast-style parallel wavefolder.
• Normalled into the auxiliary input on the VCA in parallel with the filter.

Dual Digital Envelopes

• ENV A is a versatile east coast style ADSR / AHDSR envelope generator with a hold function and dynamic level/time control. Normalled to the VCA to instantly shape your sound.
• ENV B is a complex, multimode function generator with a West Coast style AR/ASR/Cycling AR, a beat syncable LFO, and Burst generator modes. Normalled to the filter for instant FM without patching.

VCA A and Output Path

• VCA A is a linear VCA with auxiliary input.
• Global Output Mixer with overdrive circuit and bypassable asymmetric soft clipping.


  The Top Row

  • Easy to access Pitch, Gate, and Velocity CV inputs.
  • Pedal Send and Return FX loop with Wet/Dry control, phase inverter and Line/Pedal level switches.
  • Output Mixer with Overdrive.
  • Eurorack Level Main output with level control for interfacing with other modular gear.

The Outside world — MIDI, Pedal and Audio I/O

Cascadia is equipped with a ton of I/O to get it connected to the rest of your gear.

Rear Panel

• ¼” Stereo Headphone jack.
• ¼” Balanced Output Jack.
• ¼” Balanced Input routed to a slider and output on the main panel for patching anywhere into Cascadia.
• ¼” TS Pedal FX Send Return and ¼” TRS Expression Out.
• MIDI DIN In/Out/Thru and USB-MIDI all routed to the MIDI > CV Interface on the top panel.

MIDI > CV Interface

Deeper MIDI configuration is available with our Intelljel Config App (link below).

• MIDI Pitch / Velocity Outputs and Learn Button
• MIDI Gate / Trig Outputs
• MIDI CC / Mod — Learnable and assignable to any CC on any Channel
• MIDI LFO — Multimode LFO synced with MIDI or Tap Clock
• MIDI CLK — Dividable MIDI clock with alternate Tap Clock functionality.

Cascadia comes ready to play.

The normalization behind the panel allows for a ton of exploration without ever adding a patch cable; there is years of material to explore in Cascadia and years more when you start patching. We’ve included everything you need to get started: 14 assorted patch cables, USB-A to USB-C cable, and an international power supply.
